Continuous methane monitoring system by AIRMO

fully automated, open-path, continuous methane monitoring system

One system. Multiple sectors. Zero gaps in methane monitoring.

AIRMO CMS provides accurate, real-time methane monitoring with rapid response times and minimal operational overhead. Designed for easy integration, it helps operators to detect leaks early, take action faster, and meet regulatory requirements with confidence.

contact sales

Key capabilities and Technical Specifications

What makes continuous monitoring system the smarter choice

AIRMO system monitors methane emissions on your site continuously and directly. It operates 24/7, calculating emission rates from actual plume measurements - no reliance on weather models or assumptions. The modular system is quick to deploy, with automatic beam alignment and wireless operation.

Real-time leak detection

CMS continuously monitors air across a site using laser-based absorption spectroscopy. It detects abnormal methane concentrations with high sensitivity and sends instant alerts via SMS, email, or API.

Flux-based quantification

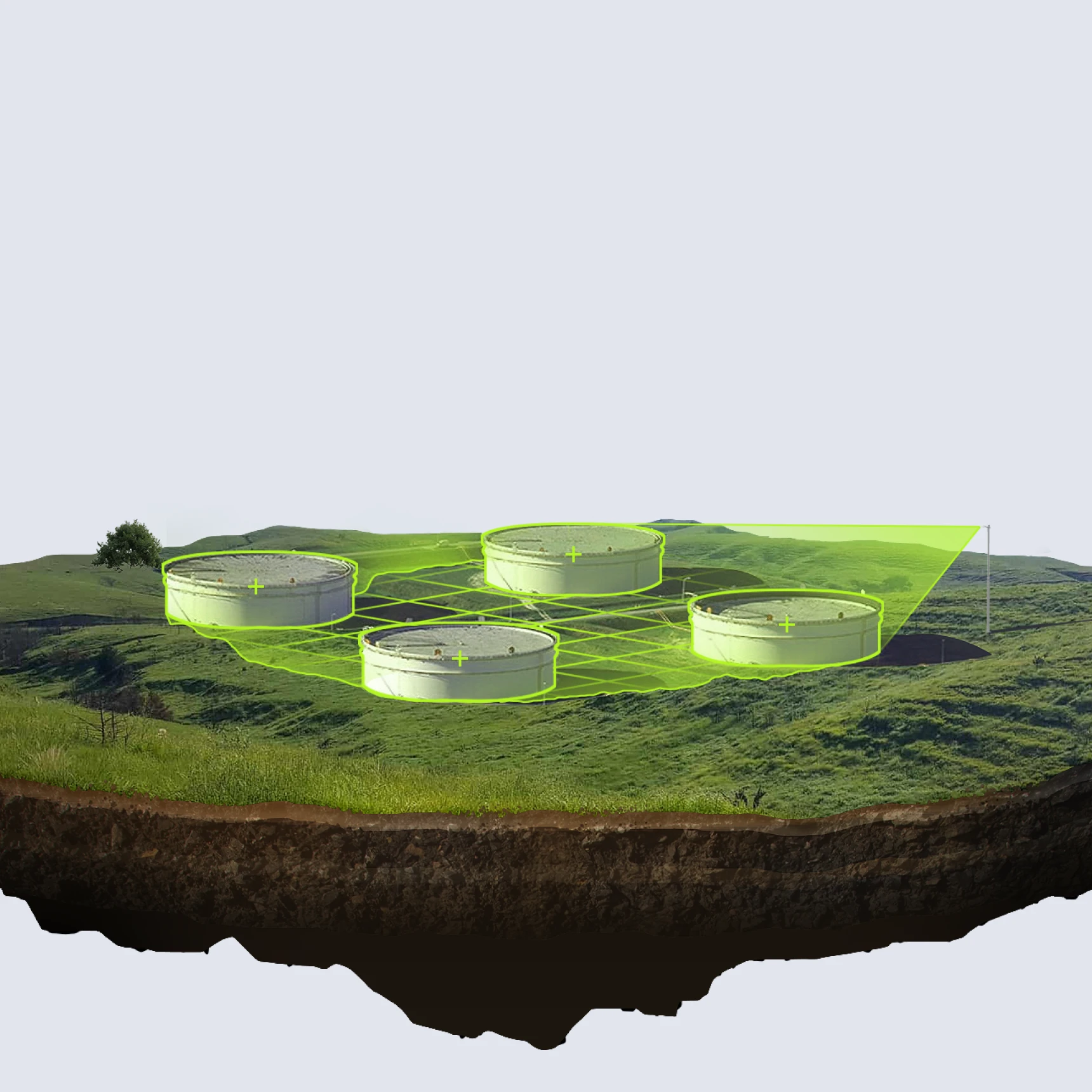

By scanning a laser beam across a fixed path, CMS creates a “flux plane” to directly measure the amount of methane moving through it. This allows for real emission rate estimates using mass-balance calculations, no need for dispersion models.

Smart event classification

Patented algorithms analyze high-frequency data to differentiate between intentional releases and unintentional leaks, minimizing false alarms.

Parameter

Specification

Detection range

Up to 300 meters

Sensitivity

≤ 5 ppm·m path-integrated concentration

Minimum detectable leak rate

From 10 grams per hour

Quantification accuracy

±20% nominal for steady-state emissions

Measurement frequency

>1 Hz

Localization accuracy

≤ 1 meter

Power supply

Solar-powered, ~1 W consumption

Operating temperature range

–25°C to +55°C

Humidity tolerance

0–100% RH; functions in all weather except dense fog or heavy precipitation

False alarm rate

<0.1% (target, based on algorithm configuration)

Connect With Us for Full Specs

System Components

No emissions missed? Here's how we deliver scalable, continuous monitoring

The AIRMO system is built for reliability at scale. With no moving parts in the sensor head, it’s self-monitoring and low maintenance, offering over eight years of service life. Fast response times and low operational costs make it ideal for proactive leak management. Designed for distributed coverage across large facilities or multi-site operations, it remains cost-efficient even in complex environments.

order now

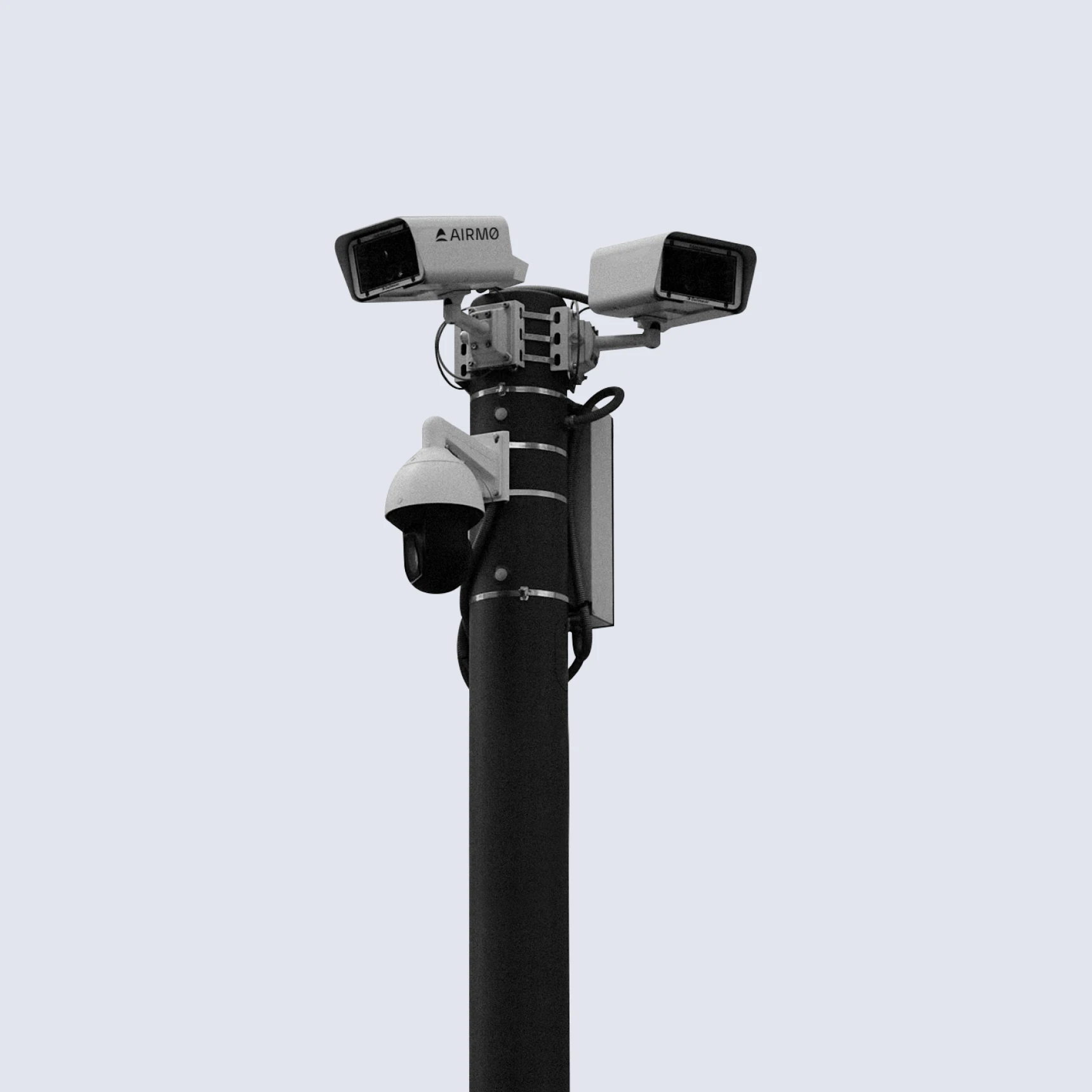

Sensor unit. Integrated optical transceiver with control electronics and wireless communications.
Scanning & alignment system. Motorized pan/tilt platform with automated beam alignment and continuous correction.
Backscatter target. Passive reflector located at a distance (≤ 300 m) to return the laser beam.
Power module. Low-power solar unit with battery backup; supports remote and off-grid operation.
Cloud analytics & integration. Secure remote access to real-time and historical data; supports data export in CSV, JSON, and GeoJSON formats. REST API available for full system integration.

contact sales

Easy methane compliance and reporting

CMS is designed to support regulatory reporting under EU Methane regulation, OGMP 2.0, and similar frameworks by providing:

• Transparent, high-resolution measurement data

• Event-level leak detection with timestamps and geolocation

• Continuous quantification to supplement LDAR surveys

Reporting Help
